铝锻造 2片式轮圈
LM
“勒芒24小时耐力赛”是全世界最艰难的赛事之一。
活跃于赛场上的赛车多选用BBS的赛车轮圈，基于此类轮圈
诞生了铝锻造2片式轮圈LM（Le Mans）。
自1994年发售以来，至今为全世界所钟爱的BBS不朽的设计。
INFORMATION 新闻
COLOR 色彩
-

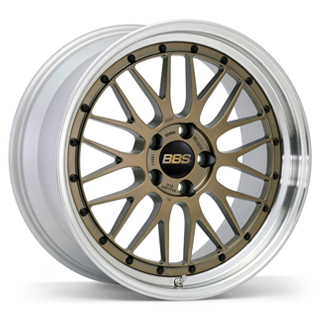

〈盘〉金×〈轮辋〉银钻石切割 （GL-SLD）
-
〈盘〉钻石银×〈轮辋〉银钻石切割（DS-SLD）
19inch～ +5,000 Yen -
〈盘〉钻石黑×〈轮辋〉银钻石切割 （DB-SLD）
19inch～ +5,000 Yen -

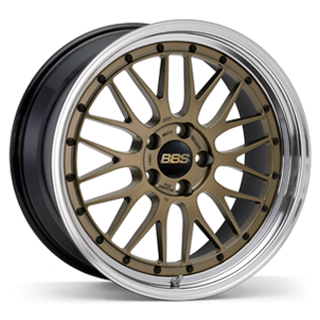

＜盘＞金×＜轮辋＞亮黑×＜抛边＞闪亮钻石切割
(GL-BKBD) +5,000 Yen -
＜盘＞钻石银×＜轮辋＞亮黑×＜抛边＞闪亮钻石切割
(DS-BKBD) 17/18inch +5,000 Yen
19inch～ +10,000 Yen -
＜盘＞钻石黑×＜轮辋＞亮黑×＜抛边＞闪亮钻石切割
(DB-BKBD) 17/18inch +5,000 Yen
19inch～ +10,000 Yen
IMAGE 参考图
SPEC 规格
| TYPE | SIZE | INSET | H/P.C.D | PFS/BORE | WEIGHT | Without tax |
|---|---|---|---|---|---|---|
| LM242 | 17×7.0 | 48 | 4/100.0 | PFS | 8.7kg | ￥108,000 |
| LM414 | 17×7.0 | 46 | 5/100.0 | PFS | 9.0kg | ￥108,000 |
| LM441 | 17×7.0 | 42 | 4/100.0 | PFS | 9.0kg | ￥108,000 |
| LM076 | 17×7.5 | 38 | 5/114.3 | PFS | 9.5kg | ￥110,000 |
| LM135 | 17×7.5 | 25 | 5/130.0 | 71.6 | 9.9kg | ￥110,000 |
| LM198 | 17×7.5 | 40 | 4/100.0 | PFS | 8.9kg | ￥110,000 |
| LM274 | 17×7.5 | 48 | 5/112.0 | 66.5 | 9.4kg | ￥110,000 |
| LM089 | 17×8.0 | 40 | 5/120.0 | 72.5 | 9.6kg | ￥112,000 |
| LM276 | 17×8.5 | 18 | 5/120.0 | PFS | 10.0kg | ￥114,000 |
| LM136 | 17×9.0 | 17 | 5/130.0 | 71.6 | 10.4kg | ￥116,000 |
| TYPE | SIZE | INSET | H/P.C.D | PFS/BORE | WEIGHT | Without tax |
|---|---|---|---|---|---|---|
| LM095 | 18×7.5 | 45 | 5/114.3 | PFS | 10.0kg | ￥126,000 |
| LM247 | 18×7.5 | 49 | 5/100.0 | PFS | 9.6kg | ￥126,000 |
| LM275 | 18×7.5 | 48 | 5/112.0 | 66.5 | 10.1kg | ￥126,000 |
| LM442 | 18×7.5 | 55 | 5/114.3 | PFS | 9.9kg | ￥126,000 |
| LM455 | 18×7.5 | 40 | 5/112.0 | PFS | 10.3kg | ￥126,000 |
| LM078 | 18×8.0 | 35 | 5/114.3 | PFS | 10.3kg | ￥128,000 |
| LM080 | 18×8.0 | 40 | 5/114.3 | PFS | 10.2kg | ￥128,000 |
| LM122 | 18×8.0 | 35 | 5/108.0 | 67 | 10.4kg | ￥128,000 |
| LM141 | 18×8.0 | 50 | 5/130.0 | 71.6 | 10.7kg | ￥128,000 |
| LM233 | 18×8.0 | 45 | 5/114.3 | PFS | 10.3kg | ￥128,000 |
| LM430 | 18×8.0 | 45 | 5/112.0 | PFS | 10.4kg | ￥128,000 |
| LM444 | 18×8.0 | 35 | 5/112.0 | PFS | 10.2kg | ￥128,000 |
| LM114 | 18×8.5 | 38 | 5/114.3 | PFS | 10.1kg | ￥130,000 |
| LM264 | 18×8.5 | 45 | 5/100.0 | PFS | 10.0kg | ￥130,000 |
| LM265 | 18×8.5 | 56 | 5/130.0 | 71.6 | 10.7kg | ￥130,000 |
| LM413 | 18×8.5 | 35 | 5/112.0 | PFS | 10.2kg | ￥130,000 |
| LM077 | 18×9.0 | 42 | 5/114.3 | PFS | 10.4kg | ￥132,000 |
| LM194 | 18×9.0 | 25 | 5/114.3 | PFS | 10.6kg | ￥132,000 |
| LM234 | 18×9.0 | 48 | 5/114.3 | PFS | 10.2kg | ￥132,000 |
| LM285 | 18×9.0 | 50 | 5/130.0 | 71.6 | 10.9kg | ￥132,000 |
| LM115 | 18×9.5 | 38 | 5/114.3 | PFS | 10.4kg | ￥134,000 |
| LM086 | 18×10.0 | 20 | 5/114.3 | PFS | 10.8kg | ￥136,000 |
| LM195 | 18×10.0 | 25 | 5/114.3 | PFS | 10.8kg | ￥136,000 |
| LM266 | 18×10.0 | 65 | 5/130.0 | 71.6 | 11.2kg | ￥136,000 |
| LM286 | 18×10.0 | 50 | 5/130.0 | 71.6 | 11.3kg | ￥136,000 |
| LM123 | 18×10.5 | 65 | 5/108.0 | 67 | 10.7kg | ￥138,000 |
| LM467 | 18×10.5 | 36 | 5/130.0 | 71.6 | 11.5kg | ￥138,000 |
| LM277 | 18×11.0 | 56 | 5/130.0 | 71.6 | 11.8kg | ￥140,000 |
| TYPE | SIZE | INSET | H/P.C.D | PFS/BORE | WEIGHT | Without tax |
|---|---|---|---|---|---|---|
| LM248 | 19×7.5 | 48 | 5/100.0 | PFS | 10.4kg | ￥161,000 |
| LM443 | 19×7.5 | 48 | 5/114.3 | PFS | 10.6kg | ￥161,000 |
| LM235 | 19×8.0 | 45 | 5/114.3 | PFS | 11.0kg | ￥164,000 |
| LM411 | 19×8.0 | 40 | 5/120.0 | PFS | 11.1kg | ￥164,000 |
| LM440 | 19×8.0 | 45 | 5/112.0 | PFS | 10.8kg | ￥164,000 |
| LM116 | 19×8.5 | 55 | 5/130.0 | 71.6 | 11.2kg | ￥167,000 |
| LM220 | 19×8.5 | 43 | 5/114.3 | PFS | 11.1kg | ￥167,000 |
| LM227 | 19×8.5 | 32 | 5/120.0 | PFS | 11.2kg | ￥167,000 |
| LM236 | 19×8.5 | 27 | 5/120.0 | PFS | 11.0kg | ￥167,000 |
| LM249 | 19×8.5 | 48 | 5/112.0 | PFS | 11.0kg | ￥167,000 |
| LM269 | 19×8.5 | 32 | 5/112.0 | PFS | 11.5kg | ￥167,000 |
| LM287 | 19×8.5 | 50 | 5/130.0 | 71.6 | 11.3kg | ￥167,000 |
| LM400 | 19×8.5 | 43 | 5/112.0 | 66.5 | 11.2kg | ￥167,000 |
| LM431 | 19×8.5 | 18 | 5/120.0 | PFS | 11.1kg | ￥167,000 |
| LM453 | 19×8.5 | 25 | 5/112.0 | PFS | 11.2kg | ￥167,000 |
| LM118 | 19×9.0 | 38 | 5/114.3 | PFS | 11.2kg | ￥170,000 |
| LM250 | 19×9.0 | 42 | 5/112.0 | PFS | 11.1kg | ￥170,000 |
| LM270 | 19×9.0 | 18 | 5/114.3 | PFS | 11.2kg | ￥170,000 |
| LM403 | 19×9.0 | 27 | 5/120.0 | PFS | 11.5kg | ￥170,000 |
| LM412 | 19×9.0 | 44 | 5/120.0 | PFS | 11.2kg | ￥170,000 |
| LM423 | 19×9.0 | 40 | 5/112.0 | 66.5 | 11.2kg | ￥170,000 |
| LM466 | 19×9.0 | 34 | 5/112.0 | PFS | 11.2kg | ￥170,000 |
| LM221 | 19×9.5 | 45 | 5/114.3 | PFS | 11.1kg | ￥173,000 |
| LM228 | 19×9.5 | 35 | 5/120.0 | PFS | 11.2kg | ￥173,000 |
| LM237 | 19×9.5 | 20 | 5/120.0 | PFS | 11.4kg | ￥173,000 |
| LM257 | 19×9.5 | 50 | 5/114.3 | PFS | 11.1kg | ￥173,000 |
| LM279 | 19×9.5 | 32 | 5/112.0 | PFS | 11.4kg | ￥173,000 |
| LM421 | 19×9.5 | 38 | 5/112.0 | PFS | 11.3kg | ￥173,000 |
| LM434 | 19×9.5 | 22 | 5/120.0 | PFS | 11.4kg | ￥173,000 |
| LM463 | 19×9.5 | 23 | 5/112.0 | PFS | 11.8kg | ￥173,000 |
| LM464 | 19×9.5 | 32 | 5/114.3 | PFS | 11.5kg | ￥173,000 |
| LM119 | 19×10.0 | 40 | 5/114.3 | PFS | 11.5kg | ￥176,000 |
| LM271 | 19×10.0 | 22 | 5/114.3 | PFS | 11.6kg | ￥176,000 |
| LM272 | 19×10.0 | 25 | 5/120.0 | PFS | 11.8kg | ￥176,000 |
| LM288 | 19×10.0 | 45 | 5/130.0 | 71.6 | 11.8kg | ￥176,000 |
| LM404 | 19×10.0 | 37 | 5/120.0 | PFS | 11.5kg | ￥176,000 |
| LM424 | 19×10.0 | 50 | 5/112.0 | 66.5 | 11.4kg | ￥176,000 |
| LM224 | 19×11.0 | 63 | 5/130.0 | 71.6 | 11.7kg | ￥182,000 |
| LM281 | 19×11.0 | 25 | 5/120.0 | PFS | 12.3kg | ￥182,000 |
| LM282 | 19×11.0 | 50 | 5/130.0 | 71.6 | 12.2kg | ￥182,000 |
| LM294 | 19×11.0 | 35 | 5/112.0 | PFS | 12.3kg | ￥182,000 |
| LM435 | 19×11.0 | 37 | 5/120.0 | PFS | 11.9kg | ￥182,000 |
| LM415 | 19×12.0 | 44 | 5/130.0 | 71.6 | 12.6kg | ￥188,000 |
| TYPE | SIZE | INSET | H/P.C.D | PFS/BORE | WEIGHT | Without tax |
|---|---|---|---|---|---|---|
| LM479 | 20×8.0 | 40 | 5/120.0 | PFS | 11.8kg | ￥195,000 |
| LM185 | 20×8.5 | 36 | 5/114.3 | PFS | 11.8kg | ￥198,000 |
| LM229 | 20×8.5 | 32 | 5/120.0 | PFS | 11.9kg | ￥198,000 |
| LM240 | 20×8.5 | 43 | 5/114.3 | PFS | 11.9kg | ￥198,000 |
| LM253 | 20×8.5 | 30 | 5/114.3 | PFS | 11.6kg | ￥198,000 |
| LM273 | 20×8.5 | 38 | 5/112.0 | PFS | 12.6kg | ￥198,000 |
| LM299 | 20×8.5 | 50 | 5/112.0 | PFS | 12.6kg | ￥198,000 |
| LM422 | 20×8.5 | 30 | 5/112.0 | PFS | 12.6kg | ￥198,000 |
| LM425 | 20×8.5 | 14 | 5/120.0 | PFS | 12.1kg | ￥198,000 |
| LM457 | 20×8.5 | 22 | 5/112.0 | PFS | 12.4kg | ￥198,000 |
| LM225 | 20×9.0 | 15 | 5/120.0 | PFS | 12.1kg | ￥201,000 |
| LM283 | 20×9.0 | 20 | 5/120.0 | PFS | 12.2kg | ￥201,000 |
| LM289 | 20×9.0 | 40 | 5/114.3 | PFS | 12.1kg | ￥201,000 |
| LM407 | 20×9.0 | 25 | 5/112.0 | PFS | 12.8kg | ￥201,000 |
| LM451 | 20×9.0 | 28 | 5/114.3 | PFS | 12.2kg | ￥201,000 |
| LM471 | 20×9.0 | 42 | 5/130.0 | 71.6 | 12.5kg | ￥201,000 |
| LM230 | 20×9.5 | 37 | 5/120.0 | PFS | 12.0kg | ￥204,000 |
| LM238 | 20×9.5 | 40 | 5/114.3 | 66 | 12.2kg | ￥209,000 |
| LM241 | 20×9.5 | 45 | 5/114.3 | PFS | 12.5kg | ￥204,000 |
| LM254 | 20×9.5 | 30 | 5/114.3 | PFS | 12.1kg | ￥204,000 |
| LM291 | 20×9.5 | 36 | 5/112.0 | PFS | 12.9kg | ￥204,000 |
| LM438 | 20×9.5 | 53 | 5/114.3 | PFS | 12.3kg | ￥204,000 |
| LM458 | 20×9.5 | 38 | 5/112.0 | PFS | 12.3kg | ￥204,000 |
| LM459 | 20×9.5 | 17 | 5/112.0 | PFS | 12.8kg | ￥204,000 |
| LM460 | 20×9.5 | 8 | 5/112.0 | PFS | 12.8kg | ￥204,000 |
| LM186 | 20×10.0 | 38 | 5/114.3 | PFS | 12.2kg | ￥207,000 |
| LM226 | 20×10.0 | 20 | 5/120.0 | PFS | 12.3kg | ￥207,000 |
| LM284 | 20×10.0 | 33 | 5/120.0 | PFS | 12.4kg | ￥207,000 |
| LM408 | 20×10.0 | 38 | 5/112.0 | PFS | 13.1kg | ￥207,000 |
| LM436 | 20×10.0 | 22 | 5/112.0 | PFS | 13.1kg | ￥207,000 |
| LM439 | 20×10.0 | 25 | 5/114.3 | PFS | 12.6kg | ￥207,000 |
| LM476 | 20×10.0 | 30 | 5/114.3 | 66 | 12.7kg | ￥212,000 |
| LM239 | 20×10.5 | 20 | 5/114.3 | 66 | 12.1kg | ￥215,000 |
| LM452 | 20×10.5 | 35 | 5/114.3 | PFS | 12.4kg | ￥210,000 |
| LM465 | 20×10.5 | 15 | 5/112.0 | PFS | 13.3kg | ￥210,000 |
| LM437 | 20×11.0 | 24 | 5/112.0 | PFS | 13.2kg | ￥213,000 |
| LM477 | 20×11.0 | 10 | 5/114.3 | 66 | 12.9kg | ￥218,000 |
| LM472 | 20×12.0 | 50 | 5/130.0 | 71.6 | 13.4kg | ￥219,000 |
| LM473 | 20×12.0 | 72 | 5/130.0 | 71.6 | 13.3kg | ￥219,000 |
| TYPE | SIZE | INSET | H/P.C.D | PFS/BORE | WEIGHT | Without tax |
|---|---|---|---|---|---|---|
| LM468 | 21×8.0 | 40 | 5/114.3 | PFS | 12.9kg | ￥241,000 |
| LM427 | 21×8.5 | 14 | 5/120.0 | PFS | 13.1kg | ￥244,000 |
| LM480 | 21×8.5 | 35 | 5/112.0 | PFS | 13.2kg | ￥244,000 |
| LM260 | 21×9.0 | 32 | 5/120.0 | PFS | 13.2kg | ￥247,000 |
| LM401 | 21×9.0 | 32 | 5/114.3 | PFS | 13.3kg | ￥247,000 |
| LM409 | 21×9.0 | 22 | 5/112.0 | PFS | 13.4kg | ￥247,000 |
| LM478 | 21×9.0 | 35 | 5/120.0 | PFS | 13.5kg | ￥247,000 |
| LM405 | 21×9.5 | 35 | 5/114.3 | PFS | 13.7kg | ￥250,000 |
| LM428 | 21×9.5 | 14 | 5/120.0 | PFS | 13.9kg | ￥250,000 |
| LM433 | 21×9.5 | 28 | 5/120.0 | PFS | 13.4kg | ￥250,000 |
| LM454 | 21×9.5 | 30 | 5/114.3 | PFS | 13.4kg | ￥250,000 |
| LM261 | 21×10.0 | 38 | 5/120.0 | PFS | 13.3kg | ￥253,000 |
| LM402 | 21×10.0 | 35 | 5/114.3 | PFS | 13.5kg | ￥253,000 |
| LM410 | 21×10.0 | 40 | 5/112.0 | PFS | 13.3kg | ￥253,000 |
| LM461 | 21×10.5 | 20 | 5/112.0 | PFS | 14.4kg | ￥256,000 |
| LM462 | 21×10.5 | 10 | 5/112.0 | PFS | 14.3kg | ￥256,000 |
| LM474 | 21×12.0 | 64 | 5/130.0 | 71.6 | 14.5kg | ￥265,000 |
The products shown in this list cannot be installed on the following vehicles:
- 5H P.C.D/108：
- Volvo XC90 Plug-in Hybrid
- 5H P.C.D/112：
- Mercedes Benz（GL class, GLS class, R350 4MATIC《’12y～》, R550 4MATIC, ML63 4MATIC,S550 Plug-in Hybrid, V class,［W447］, GLE63S 4MATIC , EQC400 , GLE class, [167series]）, Bentley , Maybach（57, 62）, Maybach GLS600, BMW（X5 7-seater, X5 PHV, X7, iX, iX3, ALPINA XB7）and Audi（e-tron）
- 5H P.C.D/120：
- BMW [X5 7-seater, X5 (F15), Active Hybrid X6], Land Rover, Rolls-Royce, Bentley
- 5H P.C.D/130：
- Audi [Q7], Mercedes Benz [G55, G550, G63], Bentley
*Please enquire about Toyota Alphard/Vellfire (40 series) and Lexus LM.
REMARK 备注
| TYPE | REMARK |
|---|---|
| LM116 | Use the OEM bolts. |
| LM141 | Use the OEM bolts. |
| LM224 | Use the OEM bolts. |
| LM238 | Suitable for run-flat tire, anti-slip paint applied on the tire bead flange |
| LM239 | Suitable for run-flat tire, anti-slip paint applied on the tire bead flange |
| LM265 | Use the OEM bolts. |
| LM266 | Use the OEM bolts. |
| LM277 | Use the OEM bolts. |
| LM282 | Use the OEM bolts. |
| LM285 | Use the OEM bolts. |
| LM286 | Use the OEM bolts. |
| LM288 | Use the OEM bolts. |
| LM415 | Use the OEM bolts. |
| LM467 | Use the OEM bolts. |
| LM471 | Use the OEM bolts. |
| LM472 | Use the OEM bolts. |
| LM473 | Use the OEM bolts. |
| LM474 | Use the OEM bolts. |
| LM476 | Suitable for run-flat tire, anti-slip paint applied on the tire bead flange |
| LM477 | Suitable for run-flat tire, anti-slip paint applied on the tire bead flange |
ATTACHMENT 附属零部配件
- 中心盖 (BBS徽标/金）
- 气门咀
- 螺栓/螺母（使用原厂螺栓/螺母的尺寸不附带）
- 中心环（仅附带PFS规格尺寸）
CAUTION 注意
- 价格不包含税费。产品规格以及价格等事项可能在不另行通知的情况下进行更改。
